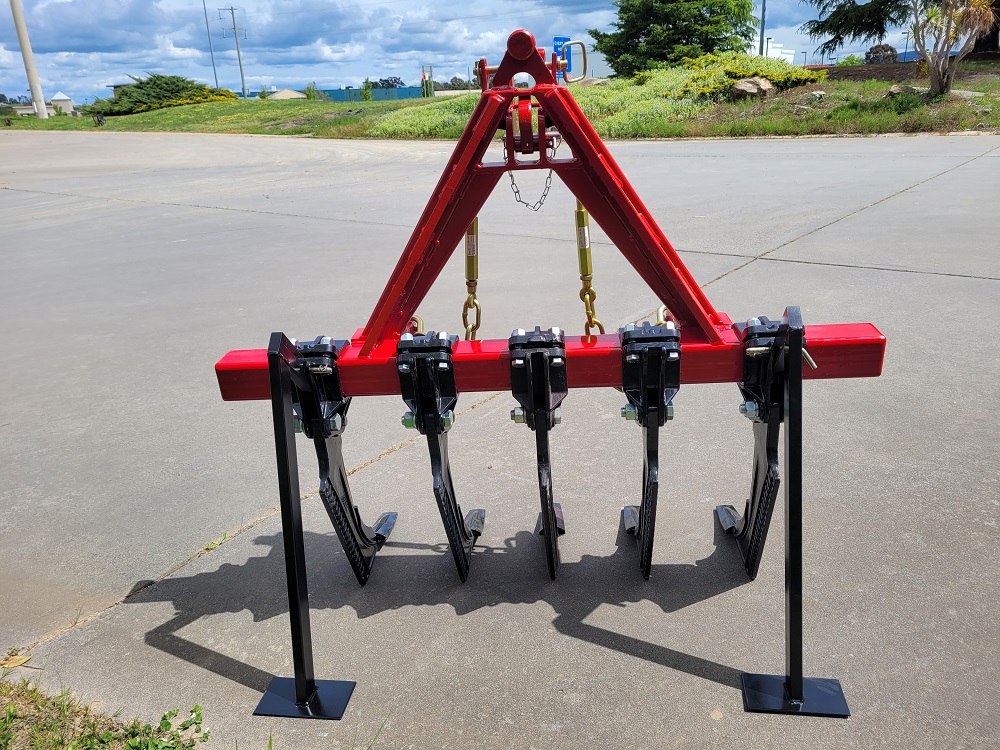

3 Point Linkage Deep Ripper Tool Bar

DEEP RIPPER TOOL BAR 1.5m (other sizes available)
1.5m Tool Bar and Accessories to suit.
100mm x 100mm x 9mm RHS
76kg (can make tool bar to suit)
A Frame inside measurement 640mm
A Frame outside measurements 900mm
$1,350 + GST
24″ Cast Ripper Leg Assembly with Standard Point $570 + GST each
Depth Control System $250 + GST
Parking Stand $150 + GST

Optional 32mm Coil Tines Pricing below

32mm Front Mounted Coil Tines with Clamp & Wedge $304 + GST each

32mm Rear Mounted Coil Tines with Clamp & Wedge $315 + GST each

8″ Sweep Point including bolts for Coil Tine $27.50 + GST each

1.5″ Reversible Chisel Point including bolts for Coil Tines $29.70 + GST

BUILD YOUR OWN PLOUGH TO SUIT

Yeomans Tickle Pot Feeder price on request

BUILD YOUR OWN PLOUGH TO SUIT

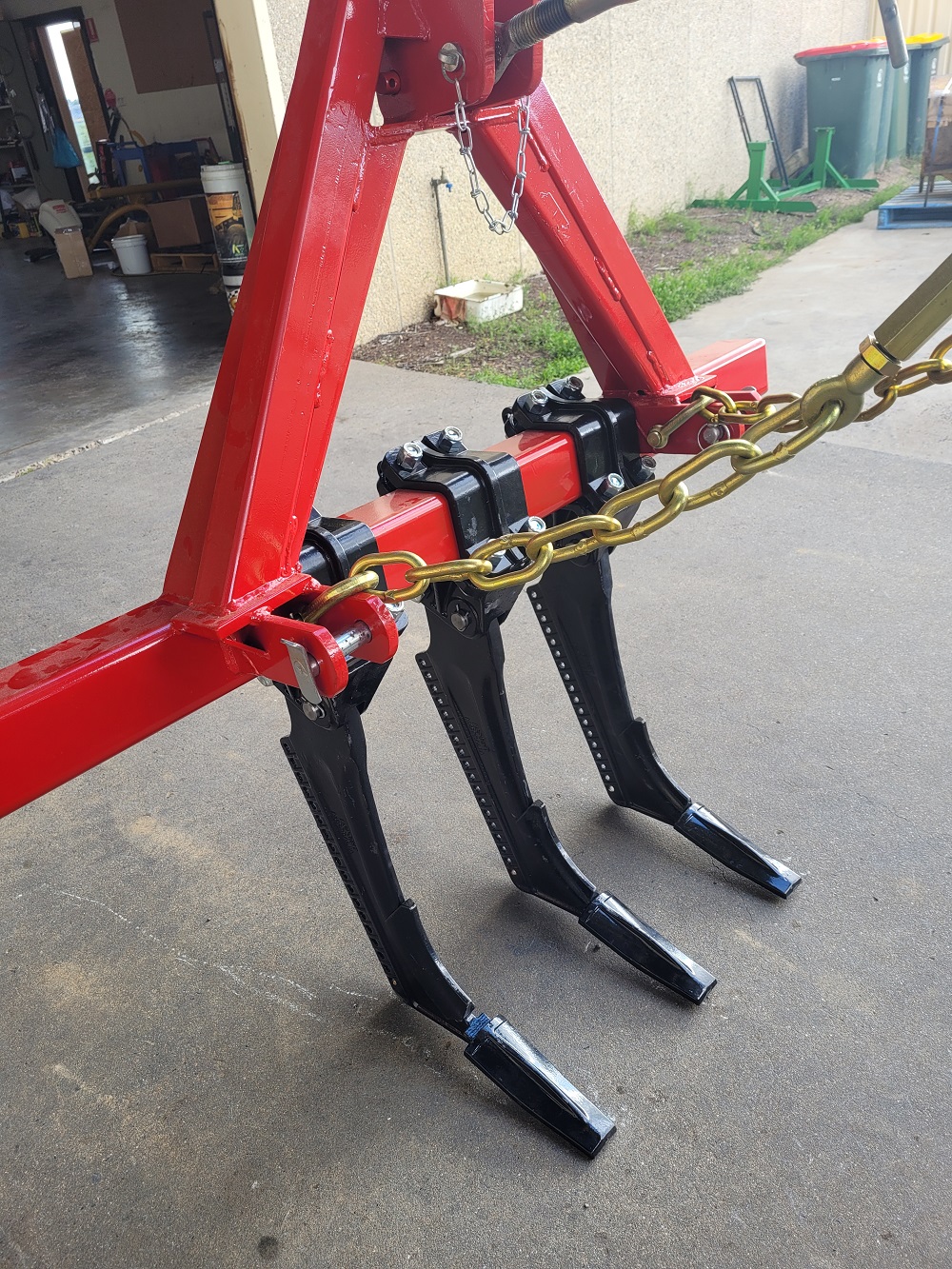

3 x Ripper tines inside A frame 255mm Centre’s
3 x Ripper tines, one inside A frame 510mm Centre’s
4 x Ripper Tines 450mm Centre’s or Less

Please use MESSAGE BUTTON to Correspond

Competitive Freight Quotes Australia Wide

Final design will be to have a tool bar that you can use for deep ripping and than convert the ground engagement point to plant seeds as a pasture improvement tool or convert it to a coil tine Scarifier/Chisel Plow
